Nauta Dryer
Nauta Dryer Manufacturer in India

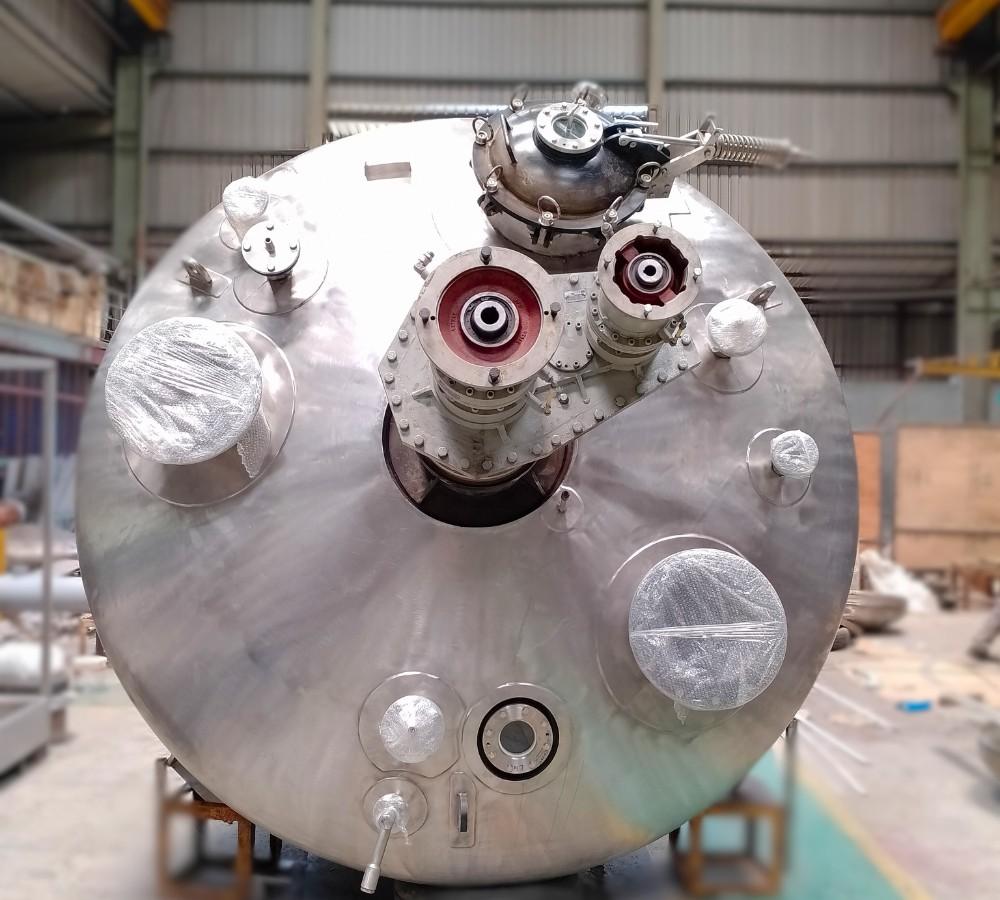

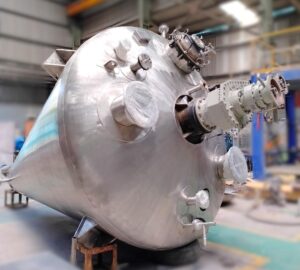

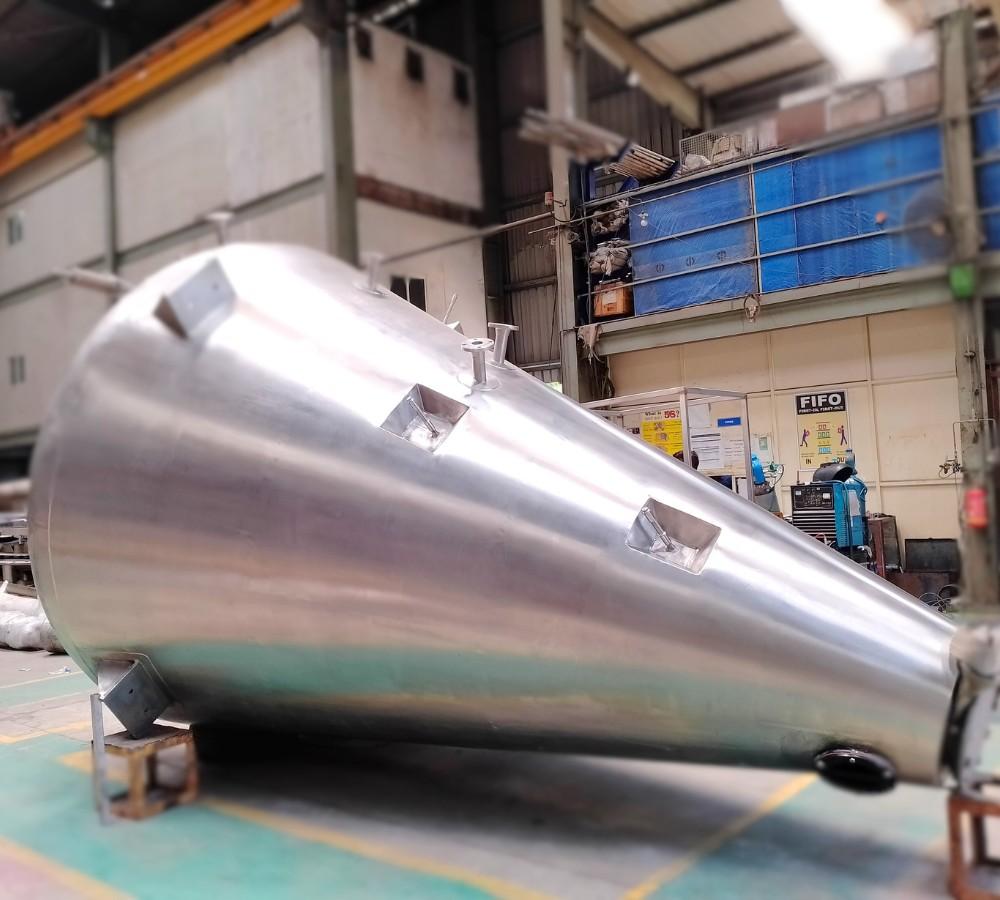

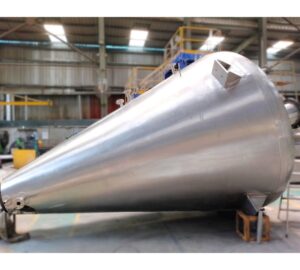

A Nauta dryer is a conical-shaped vessel in which a screw rotates, lifting material in an upward direction along with the screw rotating around the wall. It’s mainly used for gentle mixing without shearing powder. This gives the very best result in mixing as well as drying applications. A Nauta Dryer is equipment to dry powder up to 0.4% moisture. The dryer option is available with steam heating as well as a thermic fluid heating system, depending upon the utility available and the application.
Padmatech Industries, an ISO 9001:2015, DIN EN ISO 3834-2 PED-approved, ASME U-Stamp, ISO 14001:2015 and ISO 45001:2018 certified company, manufactures nauta dryers in India with a conical shape and screw. The Padmatech Nauta dryer is unique equipment with limpet as well as jacket heat transfer options. The Nauta mixer is well insulated with rockwool to avoid heat losses and give better heat efficiency. The Nauta dryer is specially designed with a planetary arm to ensure smooth movement, and also is specially fabricated heavy-duty design connecting both the gearbox and screw with internal 90° bevel gears.
Operating Principle of a Conical Nauta Dryer
The Nauta Mixer is very simple in operation, in which the screw lifts material upward from the bottom to the top. At the same time, the screw arm revolves around the cone. Due to gravity, the material is pulled down the center because of the cone shape. The Nauta Dryer is specially designed to remove powder moisture up to 0.4%. This Nauta Dryer is first filled with powder up to the screw level. While pouring this powder, the screw should be in running condition. The Nauta Dryer offers powder fill-up, and heating should be started for sensitive products instead of using steam or thermic fluid.
We prefer a hot water system as the heating medium. This heating depends upon the amount of vacuum applied with respect to the sensitivity of the product’s temperature. Due to the use of a vacuum, generally, all Nauta Dryers operate at very low temperatures. The Nauta Dryer has a sample point to check the moisture level, and once the desired moisture is achieved, we keep the screw running in a certain direction and discharge the material out.
Applications of Nauta Dryer
Pharmaceutical Industry: Nauta Dryer is mainly used in the pharma and API industries for final drying and uniform mixing of all active pharma ingredients. All API powders like aspirin, dry powder, granules, and paste are effectively dried in this Nauta Dryer.
Food Industry: It’s mainly used for spices and milk powder, interment mixing & drying. Food is a major use of the dryer. It is used for drying spices in volume. Our Nauta Dryer does both drying and mixing of spices and other food ingredient powders efficiently.
Chemical Industries: Nauta Dryers are used in the chemical industry for mixing pigments, fertilizers, and catalysts. Nauta Dryer is also used for precise and effective drying. High-value chemicals are preferred to be dried in a Nauta Dryer to minimize powder loss during the drying process.
Cosmetic: Talc mixing and drying is a very common use of the Nauta Dryer in mixing.
Advantages of Using Nauta Dryer from Padmatech Industries
Padmatech Industries has over 20 years of experience in process equipment manufacturing and Nauta Dryers. We provide custom-engineered solutions, and that is why top pharma and chemical brands trust us. We have in-house fabrication and quality assurance. We take care of the environment by providing dust filters with automation. We deliver quality products and have ASME U-Stamp, CE, and PED approved facilities. We follow global standards for pressure vessels as well as pharma standards as per the US-FDA. We also have strong service backup with 24×7 support.
-
Key Features of Nauta Dryer
-
Technical Specifications of Nauta Dryer
-
Nauta dryer available with jacket and limpet options -
Jacketed design for efficient heat transfer
-
Hot water heating option available
-
Low-temperature drying available
-
Dust collector filter provided
-
Low running cost
-
Easy to operate
-
Uniform mixing
Capacity
10 Ltr to 20,000 Ltr
Material of Construction
SS304, SS316L, ETFE/ PTFE lining, Alloy-20, HC-22, 904L
Drying Temperature Range
40°C to 150°C
Certification
ASME U-Stamp, CE, and PED compliant
Warranty
1 Year
Frequently Asked Questions
It is mainly used for mixing and drying in the API, pharma, food, and chemical industries. This application is used when precision mixing and drying are required in bulk quantities at low temperatures.
API and pharma industries mostly use the Nauta Dryer for different applications.
The Nauta Dryer offers fast and precise drying with no contamination. It allows low-temperature drying through vacuum application and can handle large batches efficiently.
Yes, vacuum drying is a common option. All Nauta Dryers operate with vacuum drying at low temperatures.
A Nauta Dryer can handle capacities from 10 L to 20,000 L. It operates at drying temperatures between 40 °C and 150 °C under full vacuum. The jacket is designed for a pressure of 3.5 kg/cm².
SS304, SS316L, ETFE-lined, 904L, Alloy-20, and HC-22 materials are available depending on the characteristics of the product.
